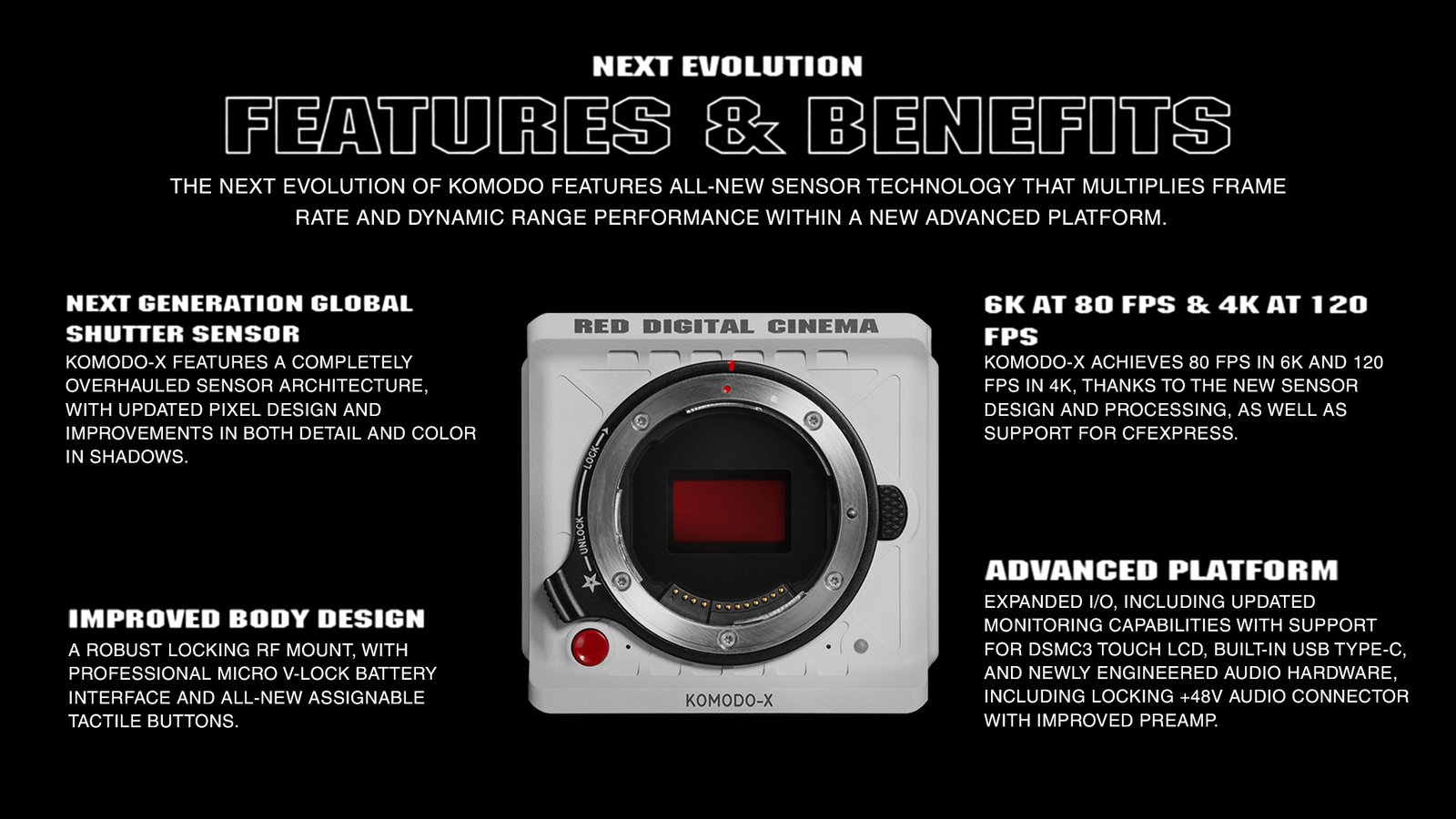

KOMODO-X™ 19.9 MP SUPER 35MM GLOBAL SHUTTER CMOS
6144 X 3240
27.03 MM X 14.26 MM (DIAGONAL: 30.56MM)
16+ STOPS
Integrated locking RF mount with electronic communication
Supports /i PL lenses with RED RF to PL Adapters
Supports Canon EF Adapter with communication and other adapters based on the RF mount
Up to 560 MB/s using RED branded or other qualified CFexpress media cards1
MAX FRAME RATES
80 fps at 6K 17:9 (6144 x 3240)
96 fps at 5K 17:9 (5120 x 2700)
120 fps at 4K 17:9 (4096 x 2160)
240 fps at 2K 17:9 (2048 x 1080)
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 FPS, ALL RESOLUTIONS
REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 (6144 x 3240) up to 80
fps
REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 (4096 x 2160) up to 120 fps
REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 (2048 x 1080) up to 240 fps
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9. 1:1, and Anamorphic
2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700) and 16:9
4K 17:9 (4096 x 2160) and 16:9
2K 17:9 (2048 x 1080)
Dedicated recording in 4K (4096 x 2160) ProRes 4444 XQ up to 60 fps,
ProRes 4444 up to 80
fps, and ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 120 fps
ALUMINUM ALLOY
2.62lbs (without body cap and CFexpress card)
TWO SLOTS FOR BP-9XX SERIES BATTERIES
CFexpress Type B
Integrated V-Lock battery interface optimized for Micro V-Lock Batteries1
11-17 V via 6-Pin DC-IN
–20°C TO 50°C (–4°F TO 122°F)
0°C to 40°C (32°F to 104°F)
-20°C to 50°C (-4°F to 122°F)
0% to 85% non-condensing
Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import and adjustment of CDLs
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48
kHz
3.5mm stereo headphone port
Phase Detect and Contrast
Proprietary Top Accessory Port for Monitoring and Control
Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control
Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
Tri-Level Genlock Input via 9-Pin EXT
LTC Timecode Input via 9-Pin EXT
RS232 CTRL (using RCP2) via 9-Pin EXT
Wi-Fi (2.4GHz/5GHz) for camera control, video preview, and
media offloading
Ethernet via USB Type-C for camera control, video preview, and media offloading
MJPEG 1080p live stream accessible through Wi-Fi and USB Type-C.
PTP for frame level synchronization
R3D live broadcasting available with RED Connect License and 5Gbps Ethernet Adapter
Access full camera controls and live preview from iOS or
Android devices.
Pro App: Operate one or multiple cameras over an IP connection to synchronize settings,
manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL
and LUT controls, and more.
Ideal for control of multi-camera arrays, multi-cam shoots, and
live events, all from one central location.
Standard app available from the Apple App Store and Google Play Store.
RED Control Pro available via Apple App store only and requires additional purchase.
RED Control works wirelessly or wired via USB Type-C
