Image excellence combined with flexibility for ENG-style productions
Created to fill the wide gap between basic still
photography zooms,
and the highly acclaimed Optimo, Optimo Style family of lenses used
in the motion pictures industry, the Angénieux EZ series features

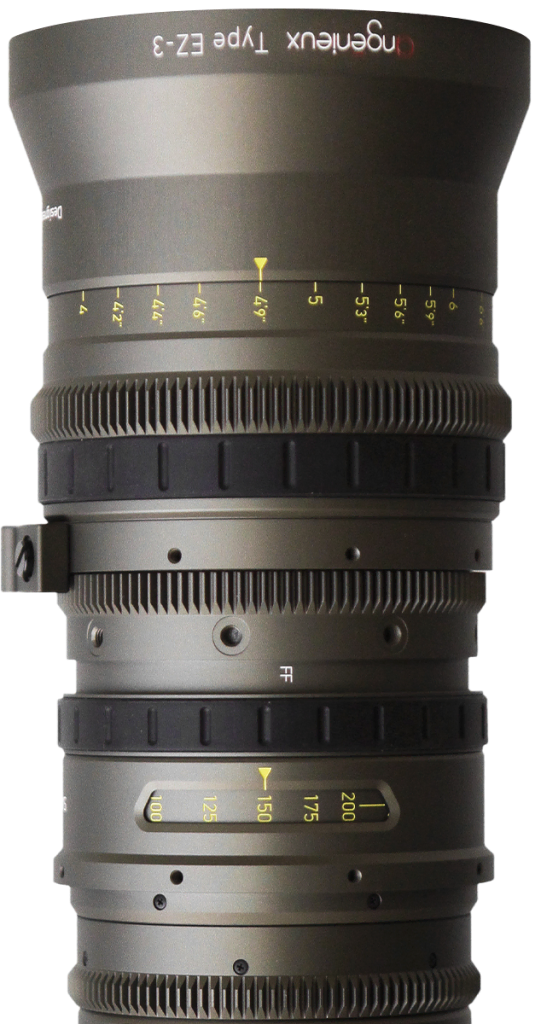

three light weight zooms : the EZ-1, EZ-2 and the brand new EZ-3.
Thanks to an innovative lens modular design
(Interchangeable Rear Optics IRO Technology®), the EZ Series
lenses allow the rear lens group to be exchanged
between S35mm (up to 30mm image diagonal), and
FF/VistaVision format (up to 46mm image diagonal).
For the first time, ENG-style productions will get
the flexibility
necessary for run-and-gun shooting, combined with an excellence
of image quality at an affordable price. Users can also easily
three light weight zooms : the EZ-1, EZ-2 and the brand new EZ-3.
change between PL, RF, EF, E. Travel light with this
set of
versatile and futur proof lenses that work with multiple cameras.
Type | EZ-1 | EZ-1 | EZ-2 | EZ-2 | EZ-3 | EZ-3 |
Standard | Standard | Wide Angle | Wide Angle | Tele | Tele | |
Image Format Coverage | FF/VV | S35 | FF/VV | S35 | FF/VV | S35 |
Zoom Ratio | 3x | 3x | 2.7x | 2.7x | 3.7x | 3.7x |
Focal Length | 45 - 135 mm | 30 - 90 mm | 22 - 60 mm | 15 - 40 mm | 68 - 250 mm | 45 - 165 mm |
Aperture | f/2.8 - T3.0 | f/1.9 - T2.0 | f/2.8 - T3.0 | f/1.9 - T2.0 | T3.5 / T4.5 | T2.3 / T3 |
Minimum Object Distance | 0.6 m - 2 ft | 0.6 m - 2 ft | 0.6 m - 2 ft | 0.6 m - 2 ft | 1.2m - 4 ft | 1.2m - 4 ft |
Internal Focus | Yes | Yes | Yes | Yes | Yes | Yes |
Image Circle Coverage | 46,3 mm | 30,4 mm | 46,3 mm | 30,4 mm | 46,3 mm | 30,4 mm |
Reference Image Size | 37.7 x 24.9 mm | 24 x 13.5 mm | 37.7 x 24.9 mm | 24 x 13.5 mm | 37.7 x 24.9 mm | 24 x 13.5 mm |
Horizontal Angular FOV | 45.6° - 15.9° | 43.6° - 15.2° | 80.2° - 35° | 77.6° - 33.7° | 31.1° - 8.6° | 30° - 8.4° |
Vertical Angular FOV | 30.8° - 10.7° | 25.1° - 8.8° | 57.4° - 24° | 44.5° - 19.6° | 20.5° - 5.8° | 16.8° - 4.8° |
FOV at MOD at focal min | 351 x 228 mm | 334 x 184 mm | 658 x 426 mm | 628 x 342 mm | 570 x 154 mm | 549 x 150 mm |
FOV at MOD at focal max | 115 x 77 mm | 110 x 63 mm | 245 x 165 mm | 235 x 134 mm | 370 x 103 mm | 303 x 80 mm |
Front Diameter | 114 mm | 114 mm | 114 mm | 114 mm | 114 mm | 114 mm |
Length | 226 mm | 226 mm | 210 mm | 210 mm | 265 mm | 265 mm |
Weight | 4.5lb - 2.1kg | 4.7lb - 2.1kg | 4.6lb - 2.1kg | 4.7lb - 2.1kg | 5.7lb - 2.6kg | 5.7lb - 2.6kg |
