BETTER BREATHING
CONTROL THAN EVER
Same as it ever was minimal
breathing in DZOFILM cine
lenses,
this time you can find
a better performance in Catta.

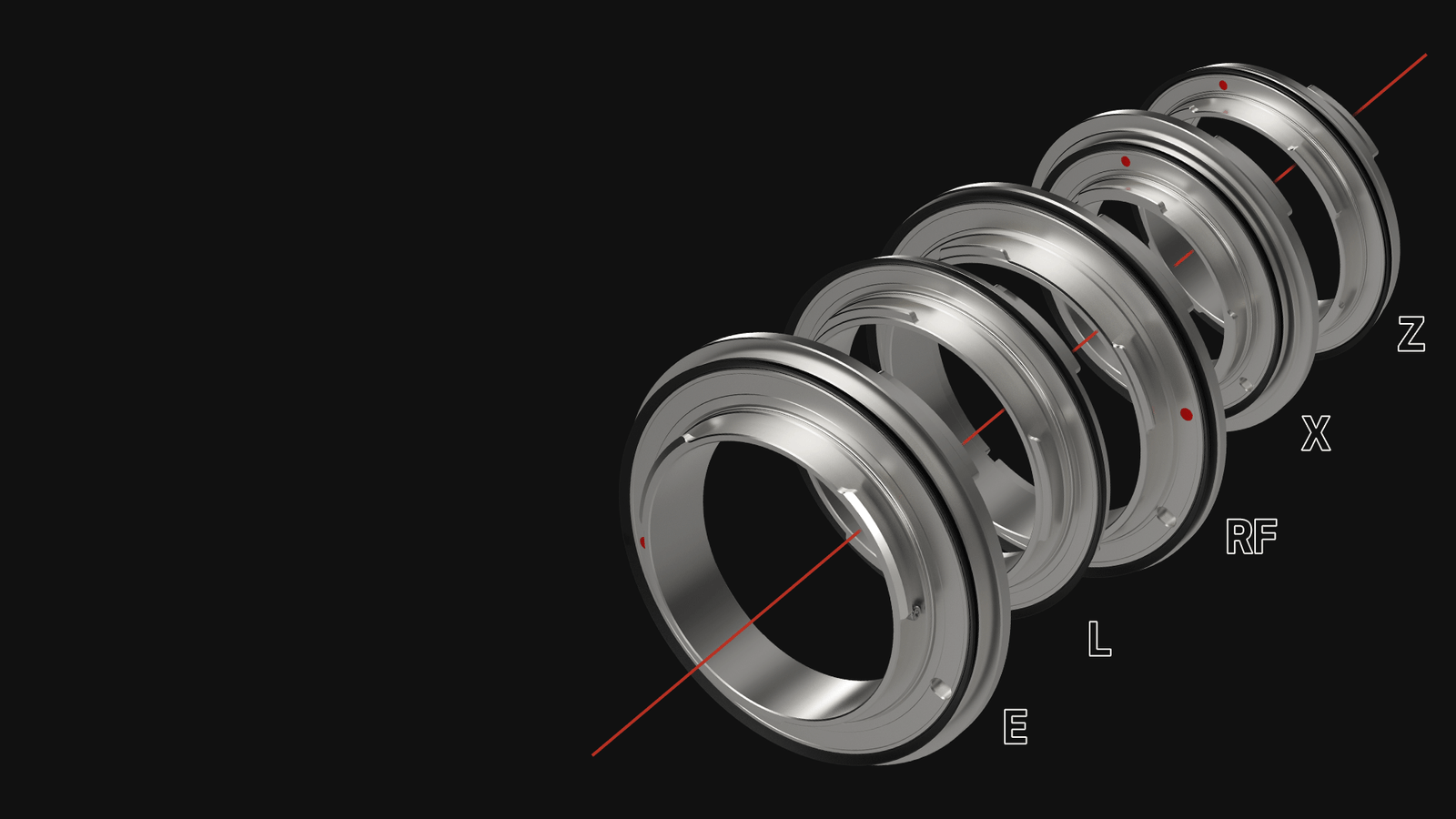

WE HAVE ALL MOUNTS YOU WANT
E? RF? L? X? Z? Pick one you love.
Quick release mount
design, get
rid of screws or screwdriver to change mount.
(PL and EF version please see Catta Ace)

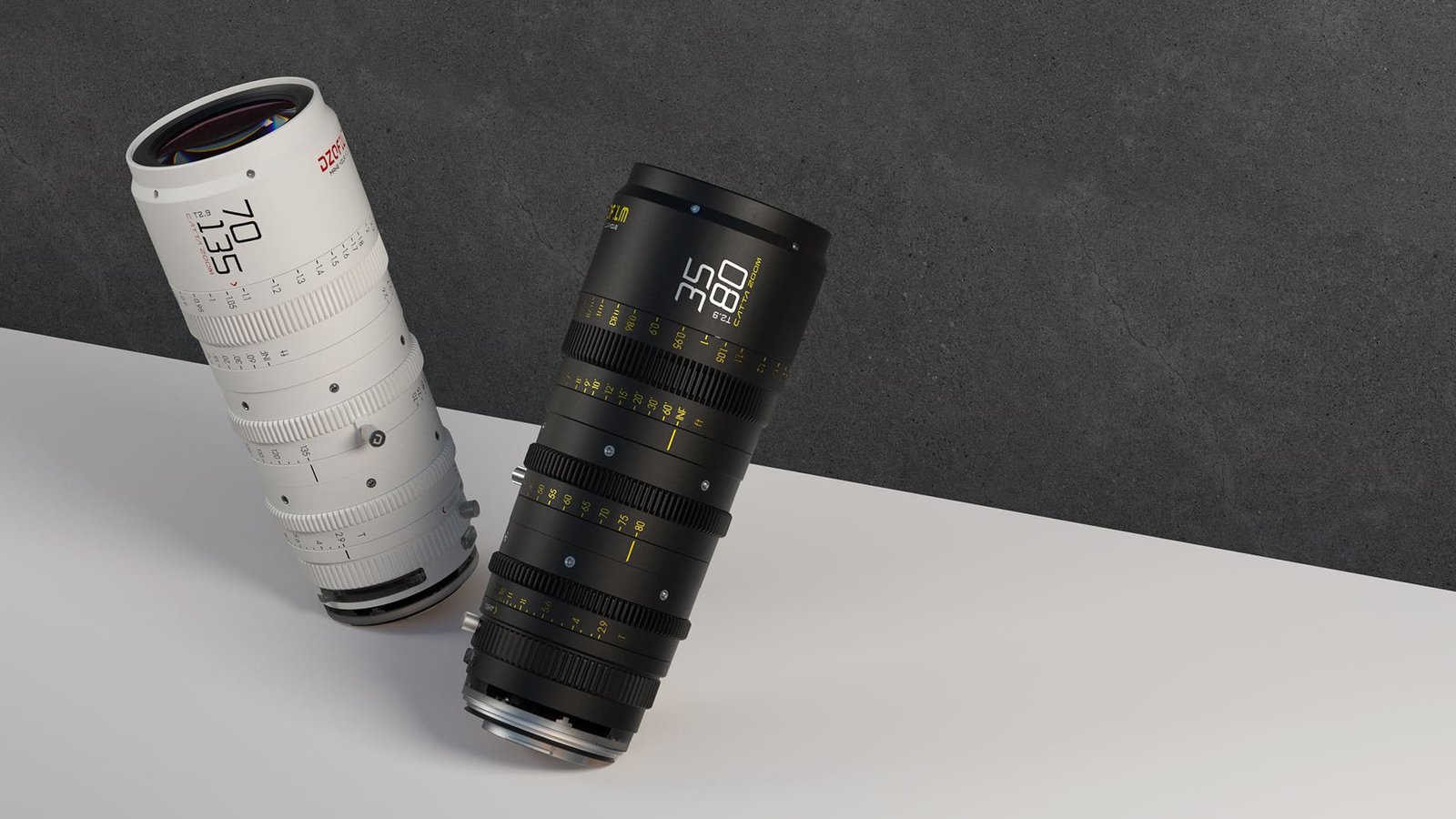

Technical Specification
| FOCAL LENGTH | 18-35 mm | 35-80 mm | 70-135 mm |
|---|---|---|---|
| COLOUR | Black | ||
| MOUNT | PL / EF / LPL | ||
| T-STOP | T2.9-T22 | ||
| IMAGE CIRCLE | φ43.5mm | φ46.5mm(VV/FF) | |
| OPTICAL CONSTRUCTION | 20 Elements in 14 Groups | 20 Elements in 15 Groups | 17 Elements in 11 Groups |
| FLANGE DISTANCE | 52mm(PL)/44mm(EF/LPL) | ||
| CLOSE FOCUS (FROM SENSOR PLANE) | 0.51m/1ft8in | 0.74m/2ft5in | 0.76m/2ft6in |
| ZOOM RATIO | 1.9X | 2.3X | 1.9X |
| IRIS CONTROL | Manual(rotation angle 77°) | Manual(rotation angle 75°) | Manual(rotation angle 80°) |
| FOCUS CONTROL | Manual(rotation angle 270°) | ||
| ZOOM CONTROL | Manual(rotation angle 100°) | ||
| FRONT DIA. | φ80mm/3.15" | ||
| LENGTH | 179.5mm/7.07"(PL) 187.5mm/7.38"(EF/LPL) | ||
| IRIS BLADE | 16 | ||
| FILTER SIZE | M77 | ||
| GEAR PITCH | 0.8 Mod | ||
| MATERIAL | Aluminum Alloy | ||
| WEIGHT | ≈1850g | ≈1635g |
