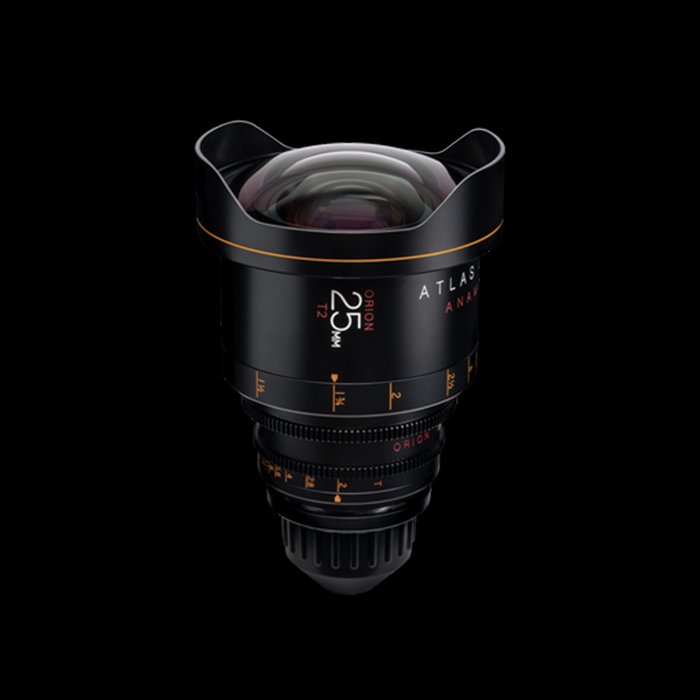

Orion 25mm

25mm Orion Series

The Orion 25mm T2 is the fast, wide-angle anamorphic lens you’ve been looking for - whether you are adding it to your existing set of Orion Series lenses, or just in need of the fastest, close focus capable 25mm 2x Anamorphic lens in the world.

Know More

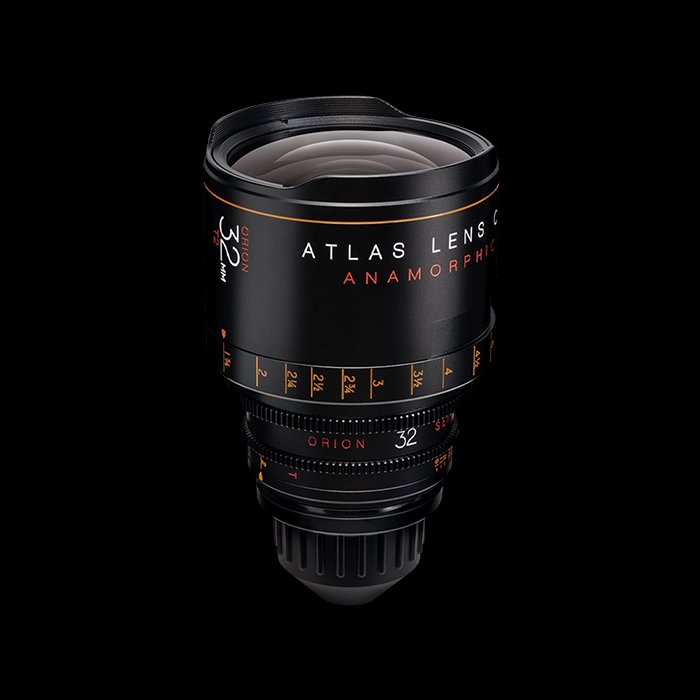

Orion 32mm

32mm Orion Series Anamorphic Prime

Orion Series 2X anamorphic prime lenses are built to be a universal filmmaking tool — perfect for the latest professional film and digital cinema cameras with native 2x Anamorphic lens.

Know More

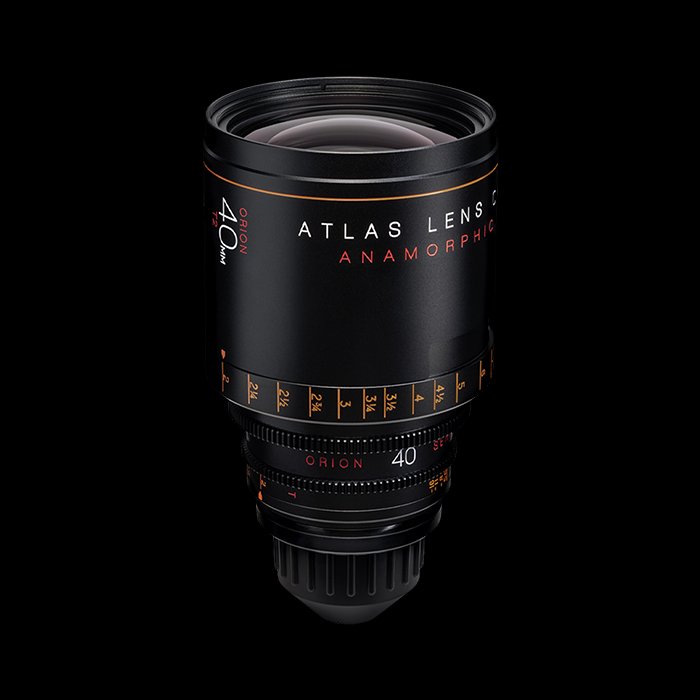

Orion 40mm

40mm Orion Series Anamorphic Prime

Whether your project requires you to shoot digital or film, the Orion Series
offer the coverage you need with a 24.89mmx18.66mm imaging area and easily covers full frame formats.

Know More

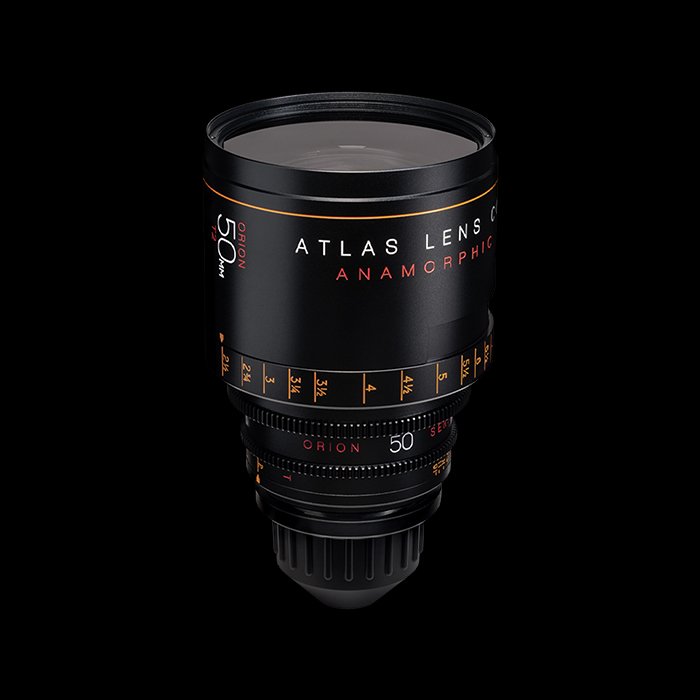

Orion 50mm

50mm Orion Series Anamorphic Prime

Whether your project requires you to shoot digital or film, the Orion Series offer the coverage you need with a 24.89mmx18.66mm imaging area and easily covers full frame formats edge-to-edge with the Atlas LF Extender.

Know More

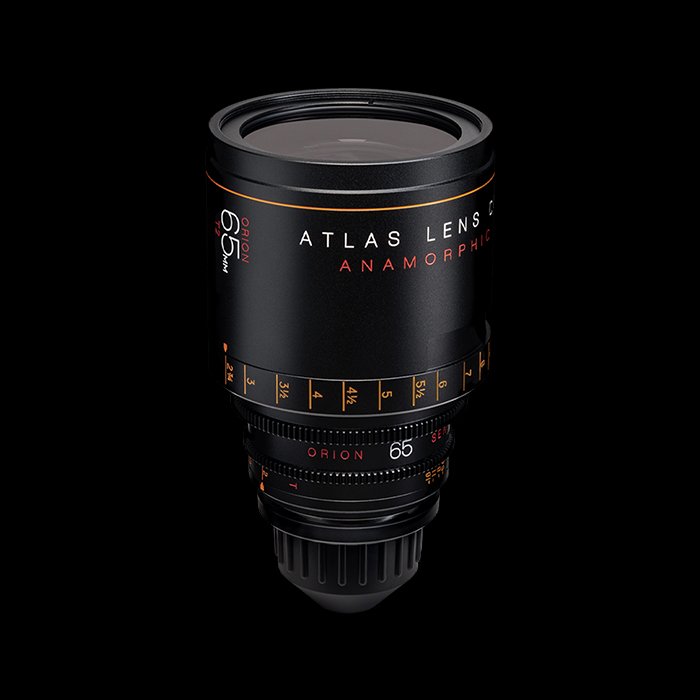

Orion 65mm

65mm Orion Series Anamorphic Prime

Whether your project requires you to shoot digital or film, the Orion Series offer the coverage you need with a 24.89mmx18.66mm imaging area and easily covers full.

Know More

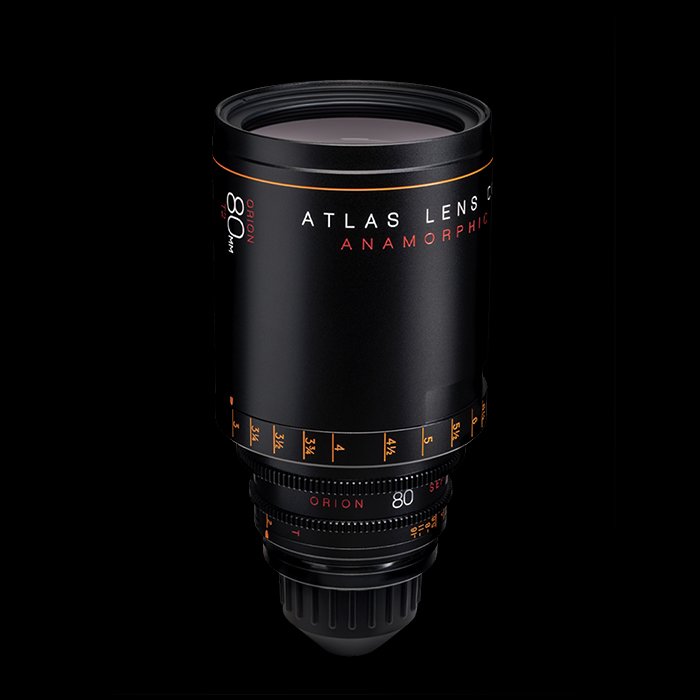

Orion 80mm

80mm Orion Series Anamorphic Prime

Whether your project requires you to shoot digital or film, the Orion Series offer the coverage you need with a 24.89mmx18.66mm imaging area and easily covers full frame.

Know More

Technical Specifications

Orion Series 32 mm 40 mm 50 mm 65 mm 80 mm 100 mm
T-Stop Range T2 - T16 T2 - T16 T2 - T16 T2 - T16 T2 - T16 T2 - T16
Min Focus (FT) 1.75 FT 2 FT 2.5 FT 2.75 FT 3 FT 3.5 FT
Min Focus (M) .53 M .53 M .76 M .84 M .91 M .1 M
Weight (LBS) 4.7 LBS 5.2 LBS 5 LBS 5 LBS 6 LBS 6.7 LBS
Weight (KG) 2.1 KG 2.4 KG 2.3 KG 2.2 KG 2.7 KG 3 KG
Length (IN) 6.7” 7.4” 7” 7.2” 8.5” 10”
Length (CM) 17 cm 18.9 cm 17.8 cm 18.4 cm 21.5 cm 25.4 cm
Front Diameter 114 mm 114 mm 114 mm 114 mm 114 mm 114 mm
Image Circle 31 mm 31 mm 31 mm 31 mm 31 mm 31 mm
