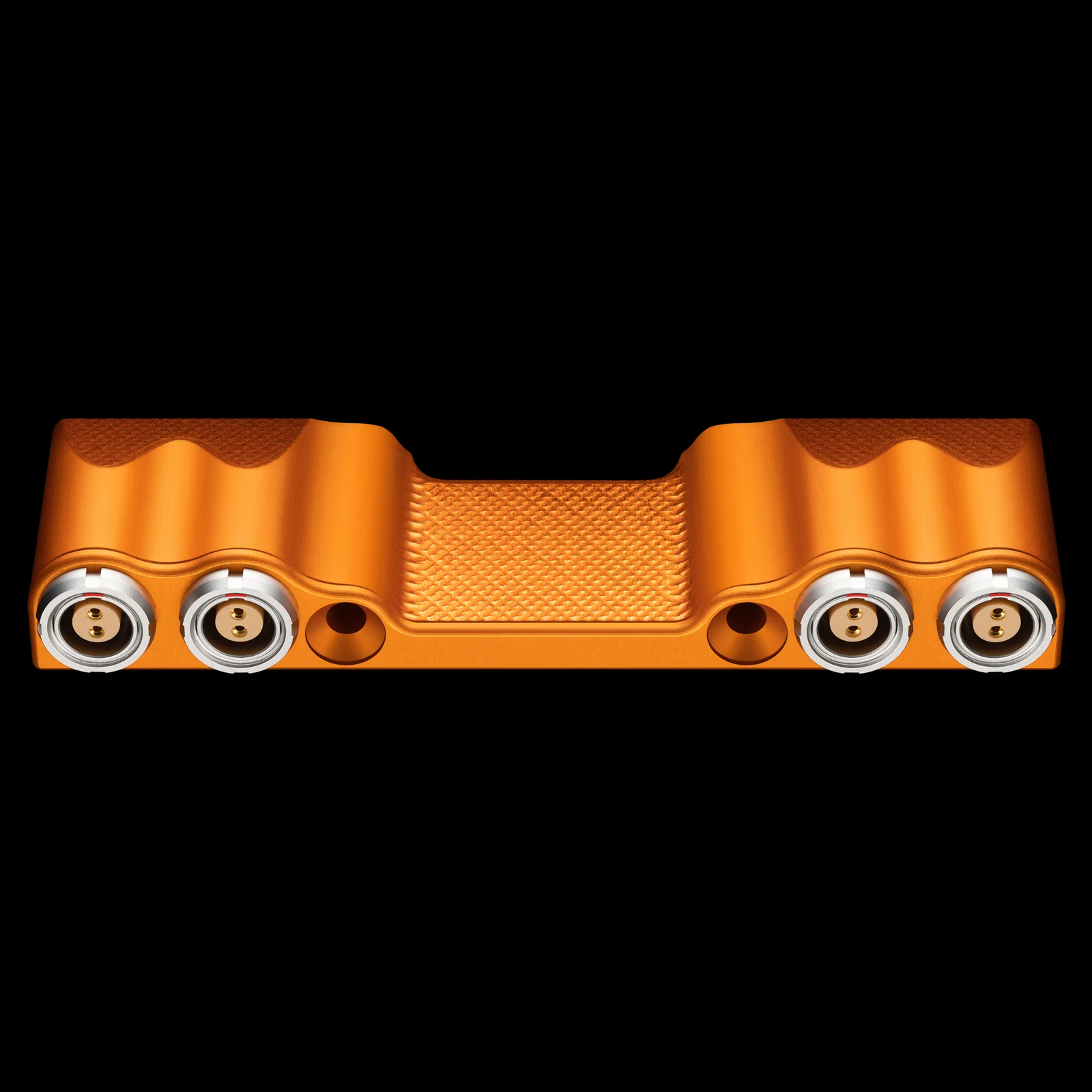

POWER BREAKOUT

2-Pin Lemo power distribution!
Use one socket as an input, leaving three outputs for your transmitter, EVF, monitor or FIZ 🎥🔥

Combine Power Breakout with Camera Top Plate A or B, and 105mm Rod Mount,
for an ultra rigid, low profile, feature filled package - ideal for handheld
and tripod shooting - even better for sliding in and out of gimbal cages!

KEY FEATURES

Any Lemo socket can be an input or an output

Custom PCB, grounded and tested

CNC machined from 6061-T651 aluminium billet Mounts to all Camera Top Plates Mounts to all KEYSTONES Mounts to Bridge Plate Booster Seat Mounts to Adapter Plates for ALEXA 35

Scroll down

SPECIFICATIONS


MADE FROM
High-grade 6061-T651 aluminium billet
Hard anodised

2-PIN LEMO SPECS
Connector: FGG.0B.302
Socket: EGG.0B.302

SHIPS WITH
Four M4 x 35mm countersunk screws

WEIGHT
2.18oz / 62g with screws

DIMENSIONS
4.01 x 1.25 x 0.59” / 102 x 32 x 15mm

KEYSTONE CHOPPED FOR V-RAPTOR

KEY FEATURES

Designed specifically to work in conjunction with the DSMC3 RED Touch 7.0" LCD Monitor

•Unlocks the Ignite Digi accessory ecosystem

•Extremely strong & lightweight design

•Enables landscape & portrait shooting

•Side LCD & buttons remain accessible

•RMI is reinforced by KEYSTONE with M4 threads

•Two ARRI rosettes

SPLITTER CABLE ‣ PWR & R/S FOR ARRI CFORCE MINI RF & KOMODO

These splitter cables allow you to feed power to your ARRI cforce mini RF motor and enables run/stop on RED KOMODO. It eliminates the need to have a seperate breakout box and streamlines your camera build.
CONNECTOR SPECS

2-Pin (male) 0B Lemo Straight connector
2-Pin (male) D-Tap/P-Tap connector
9-Pin (male) 0B Lemo Right Angle connector
3-Pin (female) Fischer Straight connector
LENGTH

Lemo: 12” / 30cm
D-Tap: 14” / 35cm
WEIGHT

Lemo: 1.69oz / 48g
D-Tap: 1.65oz / 47g
